  • Power Tower

    EXTERNAL THREAD, massive PRESS-FIT TECHNOLOGY, PINS ACROSS ENTIRE BASE

    Our product series 01.1.00XX.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.

    PRODUCT SPECIFICATION

    • High-current PCB connection
    • UNC thread or custom alterations on request
    • For attaching cable lugs, midi fuses, mega fuses and more to PCBs
    • RoHS compliant
    MAKE A
    NON-BINDING
    INQUIRY

    TECHNICAL DATA

    A B C D E F No. of poles/drilling pattern Weight [in g] Product number
    M3 5 11,5 3 3,5 7 9/B1 1,62 01.1.0001
    M4 6 12,5 3 3,5 7 9/B1 2,21 01.1.0018
    M4 6 13 3,5 3,5 9 16/B2 3,5 01.1.0002
    M5 8 15,5 4 3,5 7 9/B1 3,26 01.1.0012
    M5 8 16 4,5 3,5 9 16/B2 4,88 01.1.0003
    M6 10 19 5,5 3,5 13 25/B3 10,76 01.1.0004
    M8 13 24 7,5 3,5 13 25/B3 16,75 01.1.0005
    M10 16 27,5 8 3,5 16 36/B4 28,5 01.1.0006
    M12 30 41,5 8 3,5 18 49/B5 51,4 01.1.0028

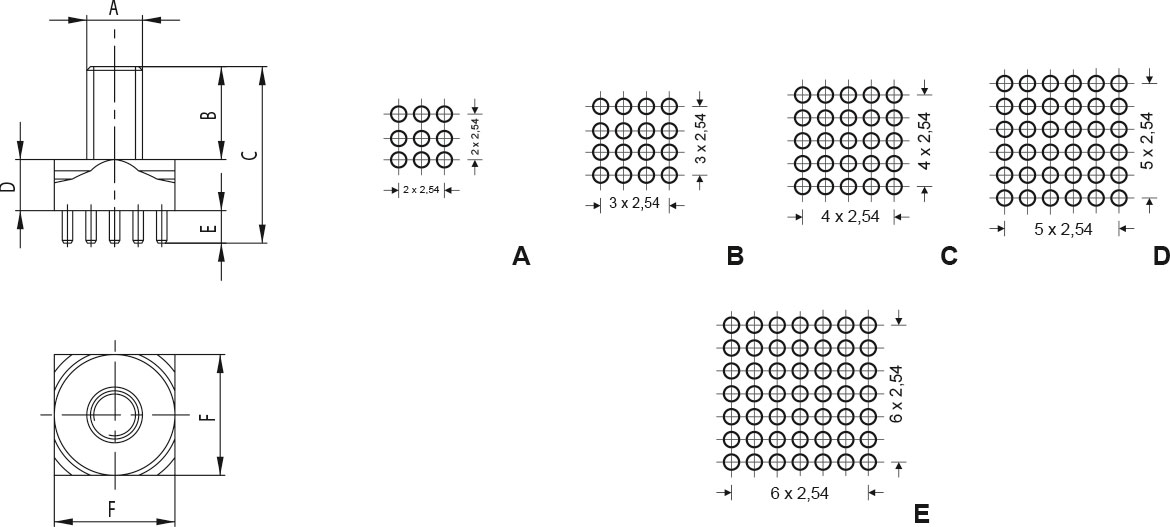

    DIMENSIONS

    Dimensions B-F in mm
