    SOCKET WITH INTERNAL THREAD, massive PRESS-FIT TECHNOLOGY, PINS ARRANGED ALL AROUND THE EDGE

    Our product series 02.3.000X.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.

    PRODUCT SPECIFICATION

    • High-current PCB connection
    • UNC thread or custom alterations on request
    • For attaching cable lugs, midi fuses, mega fuses and more to PCBs
    • For use where smaller press-in forces are required
    • For use in layouts which do not allow pins all across the base
    • RoHS compliant
    MAKE A
    NON-BINDING
    INQUIRY

    TECHNICAL DATA

    A B/D C E F No. of poles/drilling pattern Weight [in g] Product number
    M2.5 6 9,5 3,5 7 8/B1 2,57 02.3.0001
    M4 6 9,5 3,5 9 12/B2 3,94 02.3.0002
    M5 6 9,5 3,5 9 12/B2 3,71 02.3.0003
    M6 13,5 17 3,5 13 16/B3 17,05 02.3.0004
    M8 13,5 17 3,5 13 16/B3 15,32 02.3.0005
    M10 17,5 21 3,5 16 20/B4 29,41 02.3.0006

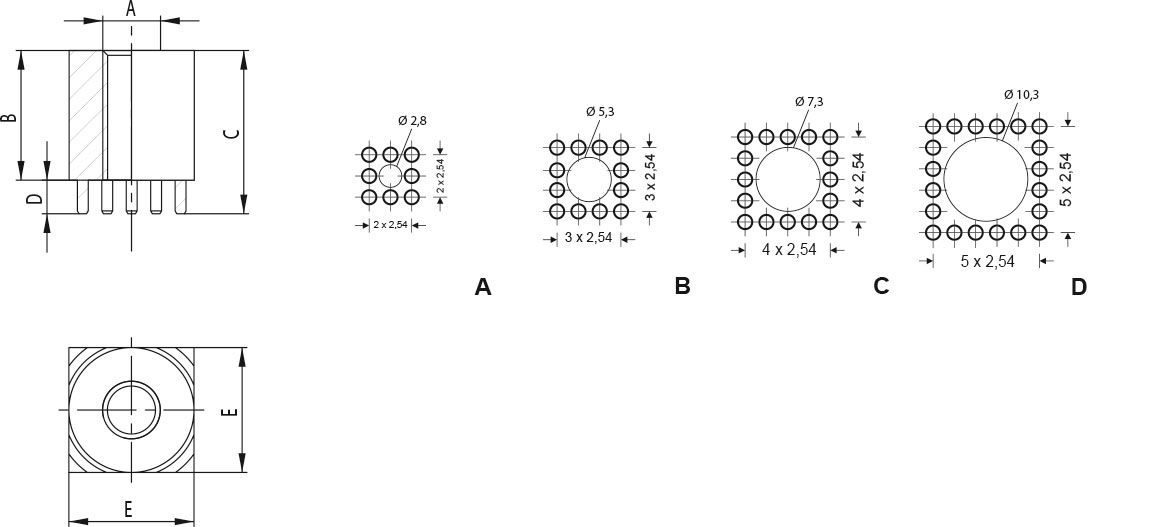

    DIMENSIONS

    Dimensions B-F in mm
