POWER 2 GROUND
TWO-PIECE, BASIC BODY, PINS AROUND EDGE
Our product series 09.2.00XX.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.
PRODUCT SPECIFICATION
- High-current PCB connection
- Protection of PCB against mechanical stresses
- For fastening cable lugs and large, heavy components such as battery isolating switches
- Contact spacing 2.85 mm
- RoHS compliant
TECHNICAL DATA
| A | B | C | D | No. of poles/drilling pattern | Weight [in g] | Product number |
|---|---|---|---|---|---|---|
| 3.1 | 3.5 | 10 | Ø 6.2 | 12/B1 | 2.27 | 09.2.0001 |
| 3.1 | 3.5 | 13 | Ø 7.3 | 16/B2 | 3.93 | 09.2.0002 |
| 3.1 | 3.5 | 16 | Ø 12 | 20/B3 | 4.49 | 09.2.0003 |

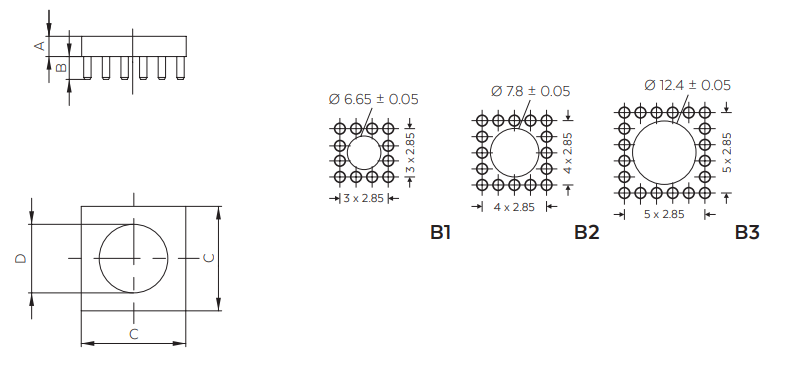

Scale Drawings
Dimensions A-D in mm
