POWER PROTECTOR
SPECIALLY FOR POWER TOWER AND POWER SOCKETS ELEMENTS
PRODUCT SPECIFICATION
- Specifically for mounting on Power Tower and Power Socket elements
- Prevents short circuits with nearby components
- Protects against contact and twisting
- Enables smaller distances between two power elements in a layout
- RoHS compliant
- REACH compliant
TECHNICAL DATA
| A | B | C | D | For use with (Power Tower,Power Socket) | Product number |
|---|---|---|---|---|---|
| 16 | 7 | 2 | 9.5 | 7s square semifinished contours | 01.0.0001 |
| 18 | 9 | 2.5 | 14.5 | 9s square semifinished contours | 01.0.0002 |
| 25 | 13 | 5 | 22.5 | 13s square semifinished contours | 01.0.0003 |
| 30 | 16 | 7 | 26 | 16s square semifinished contours | 01.0.0004 |

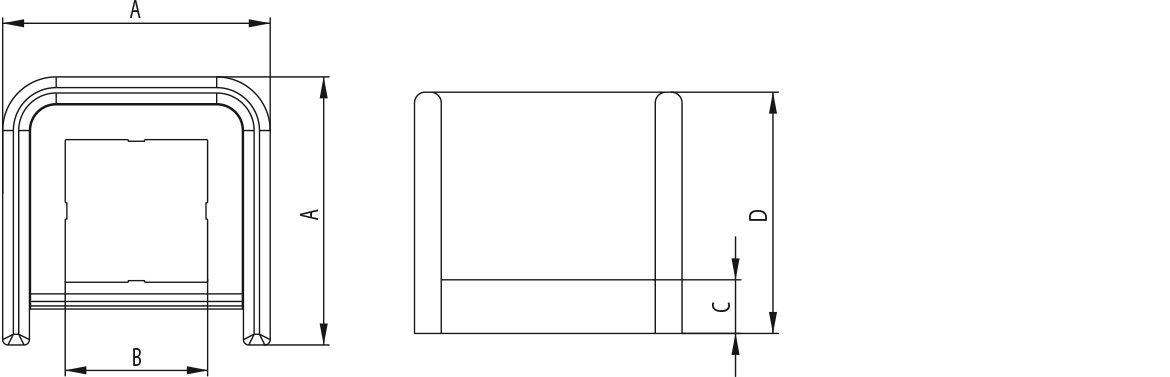

Scale Drawings
Dimensions A-D in mm
