Power Socket Seal
with or without sealing ring
INTERNAL THREAD,SOLID PRESS-FIT TECHNOLOGY, PIN ARRANGEMENT FULL-SURFACE
Our product series 02.8.00XX.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.
PRODUCT SPECIFICATION
- High-current PCB connection with sealing function
- UNC thread or custom-specific modifications on request
- For fastening cable lugs, especially as a selaed version for e.g. a push-through solution through the housing
- Direct connection from printed circuit board to housing outside particularly well suited
- Standard sizes on the right side in the table, customer specific solutions possible on request
- RoHS compliant, REACH compliant
TECHNICAL DATA
| A | B | C | D | E | F | G | H | J | No. of poles/drilling pattern | Weight [in g] | Product number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M6 | 10,5 | 14 | 6,5 | 3,5 | 2,75 | 7,25 | Ø10 | 12/B1 | 5,6 | 02.8.0004.ET | |
| M6 | 10,5 | 14 | 6,5 | 3,5 | 2,75 | 7,25 | Ø11 | 12/B1 | 5,62 | 02.8.0004 | |
| M6 | 11 | 14,5 | 7 | 3,5 | 2,6 | 7 | Ø14,8 | 21/B2 | 12,8 | 02.8.0006.ET | |
| M6 | 11 | 14,5 | 7 | 3,5 | 2,6 | 7 | Ø16,2 | 21/B2 | 12,82 | 02.8.0006 | |
| M8 | 11 | 14,5 | 7 | 3,5 | 2,6 | 7 | Ø14,8 | 21/B2 | 11,22 | 02.8.0007.ET | |
| M8 | 11 | 14,5 | 7 | 3,5 | 2,6 | 7 | Ø16,2 | 21/B2 | 11,24 | 02.8.0007 | |
| M8 | 15 | 18,5 | 8 | 3,5 | 5,25 | - | Ø13 | 21/B2 | 12,63 | 02.8.0008.ET | |
| M8 | 15 | 18,5 | 8 | 3,5 | 5,25 | - | Ø14,25 | 21/B2 | 12,65 | 02.8.0008 |

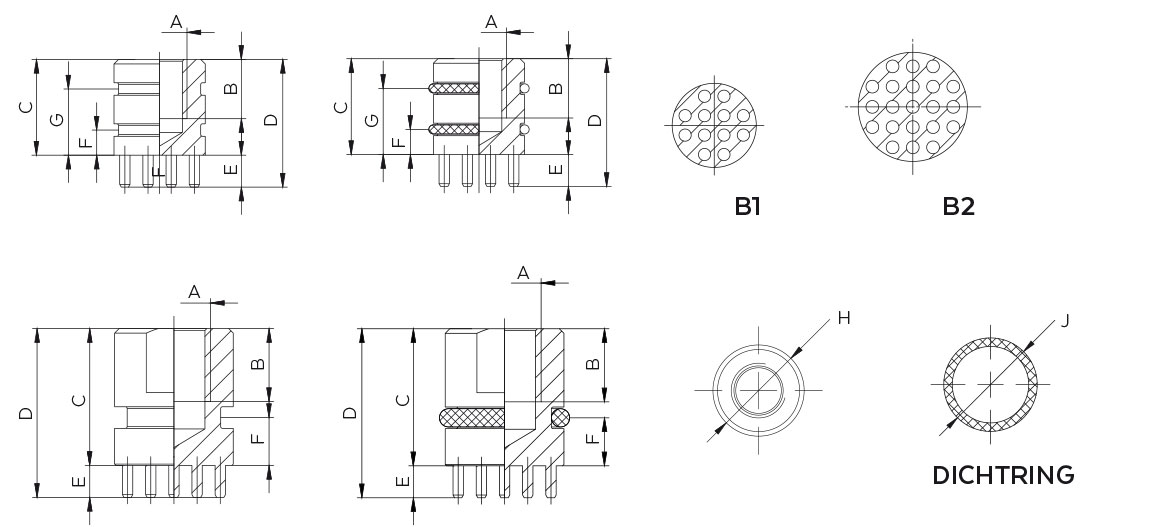

DIMENSIONS
Dimensions B-J in mm
Masses are subject to slight variations in production
