    • MTCON-JP6.5 Connector in 4th Gen

    The MTCON JP6.5 connectors in THT soldering technology are available in different versions and colors.

    PRODUCT SPECIFICATION

    • BK = Black
    • BU = Blue
    • GY = Grey
    • YE = Yellow
    • GN = Green
    • PK = Pink
    • BN = Brown
    • WH = White
    • RD = Red
    • OR = Orange
    • MT = Mint
    • LI = Lila

    Technical Data

    A B C D Dimensions Part no.
    16 3.8 7.34 15 2-pin 402100A
    16 3.8 13.84 15 4-pin 402200A
    16 3.8 20.34 15 6-pin 402300A

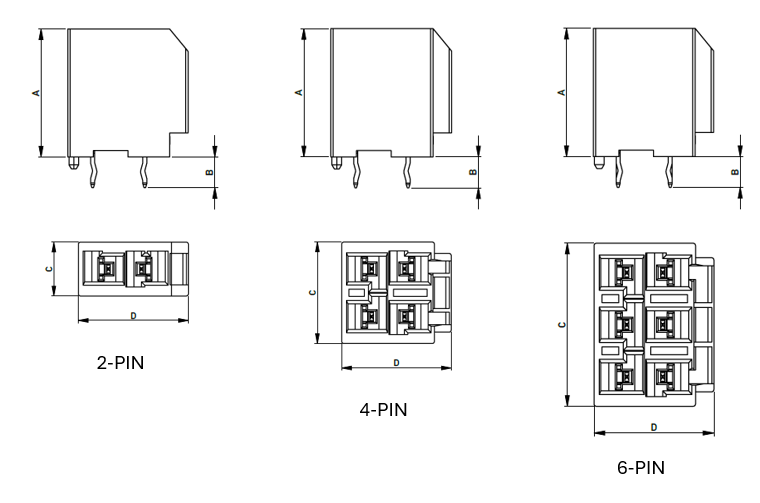

    Scale Drawings

    Measurements A–D in mm
