Contact Elements in 3rd Gen

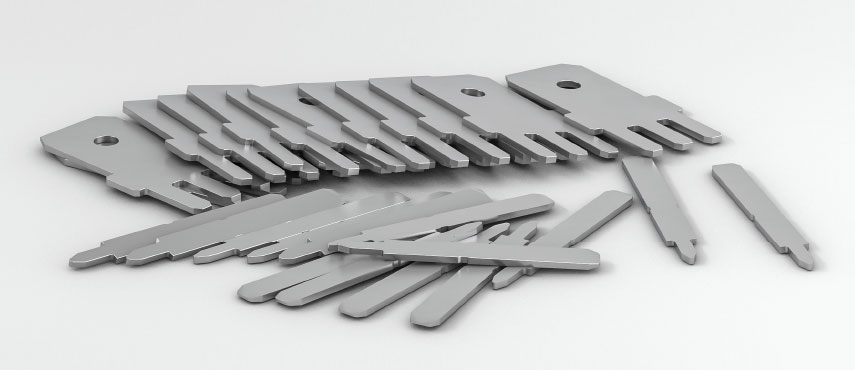

MTCON Contact Element press-fit in massive press-fit zone and in two sizes available.
Technical Data
| A | B | C | D | E | F | G | H | Dimensions | Part no. |
|---|---|---|---|---|---|---|---|---|---|
| Ø 1.8 | 11 | 15.95 | 8 | 4.25 | 0.8 | 6.3 | 4.25 | 6.3 x 0.8 | 404110A |
| - | 20 | 24.25 | 12 | 4.25 | 0.8 | 1.39 | - | 2.8 x 0.8 | 15.1.0001 |

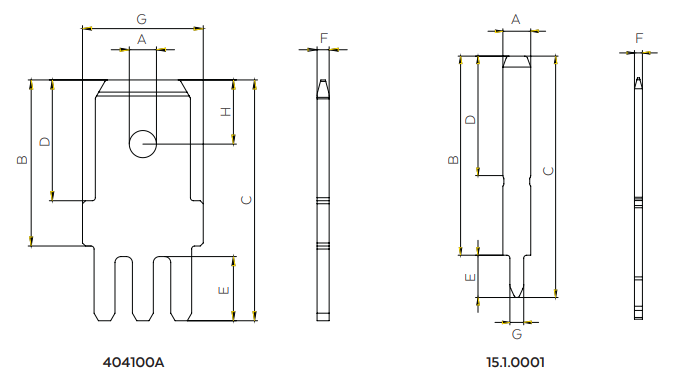

Scale Drawings
Measurements A–H and dimensions in mm
