FUSE HOLDERS in 2nd Gen
MTCON FUSE HOLDERS ARE AVAILABLE IN MINI, MAXI AND ATO VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 5 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 2 of 5 | 5 of 5 | 3 of 5 | 201210A |
| 4 of 5 | 3 of 5 | 4 of 5 | 1 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 201211A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 201212A |
Technical Data
| A | B | C | D | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|
| 15.7 | 4.85 | 9.6 | 22.8 | ATO | HD | 201210A |
| 15.7 | 4.85 | 9.6 | 22.8 | ATO | M | 201211A |
| 15.7 | 4.85 | 9.6 | 22.8 | ATO | L | 201212A |

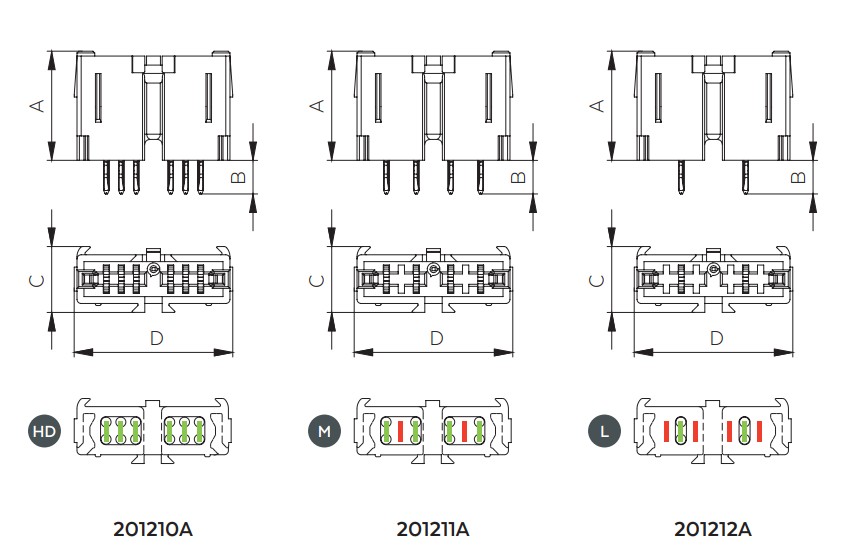

Scale Drawings
Measurements A-D in mm
