FUSE HOLDERS
MTCON FUSE HOLDERS ARE AVAILABLE IN MINI, MAXI AND ATO VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 4 of 5 | 3 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 4 of 5 | 3 of 5 | 4 of 5 | 201230A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 201231A |
Technical Data
| A | B | C | D | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|
| 13.49 | 4.25 | 6.1 | 20 | ATO | M | 201230A |
| 13.49 | 4.25 | 6.1 | 20 | ATO | L | 201231A |

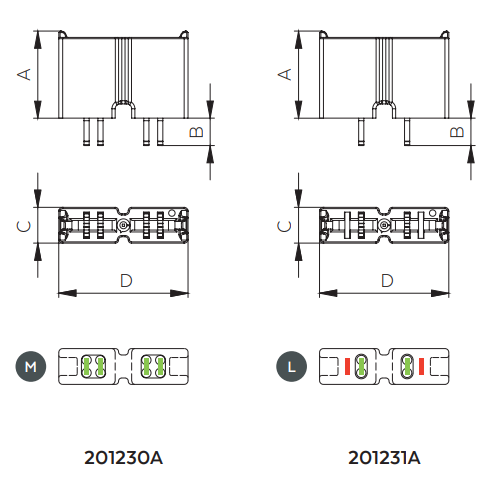

Scale Drawings
Measurements A–D in mm
