FUSE HOLDERS
Discover a world first: MTCON's innovative SMD technology. Available in Mini, ATO, and Maxi sizes.
PRODUCT SPECIFICATION
- BK = Black
Technical Data
| A | B | C | D | E | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|---|
| 15 | 0.5 | 6.7 | 15.1 | - | Mini | HD | 201160A |
| 15 | 0.5 | 6.7 | 15.1 | 4.25 | Mini | HD+ | 201161A |

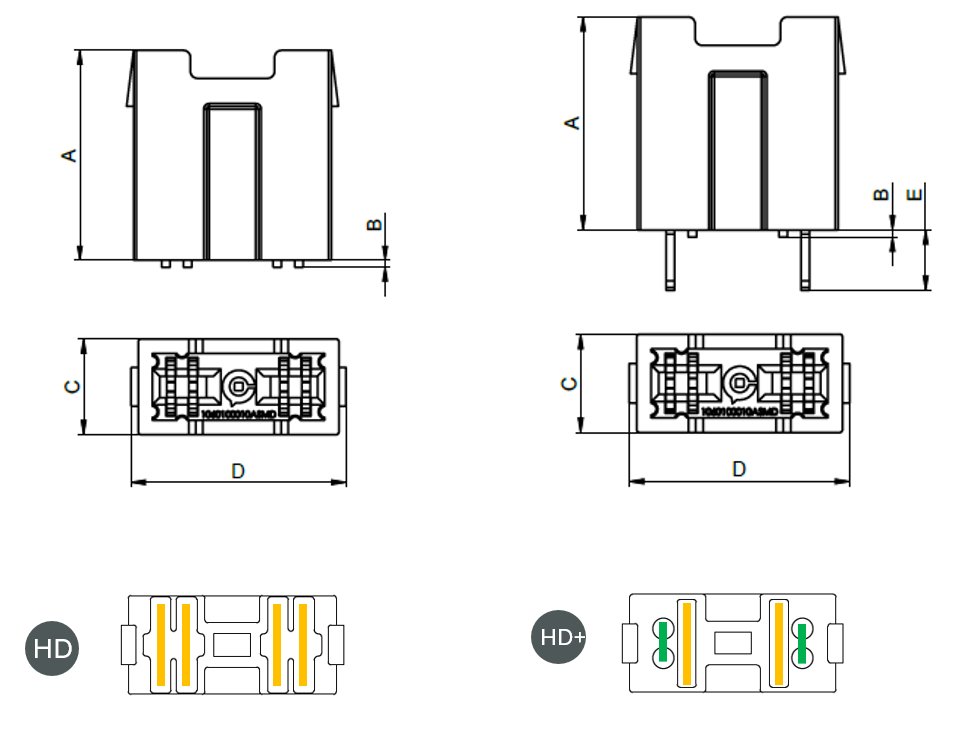

Scale Drawings
Measurements A–E in mm
