JPT Connectors 4th GEN
MTCON’S BOARD CONNECTORS ARE AVAILABLE IN MODERN PRESS-FIT VERSIONS AND VARIOUS COLOURS, COMPATIBLE WITH OTHER WIRE CONNECTORS COMMON ON THE MARKET.
PRODUCT SPECIFICATION
- BU= Blue
- WH= White
Technical Data
| A | B | C | D | Dimensions | Part no. |
|---|---|---|---|---|---|
| 18.7 | 4.65 | 26.8 | 43.8 | 21-pol | 400611AWHB |
| 18.7 | 4.65 | 26.8 | 43.8 | 21-pol | 400612ABUC |

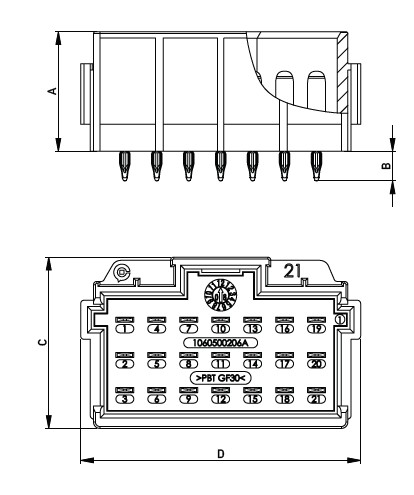

Scale Drawings
Measurements A–D in mm
