MTCON-JP6.5 Connector in 4th Gen

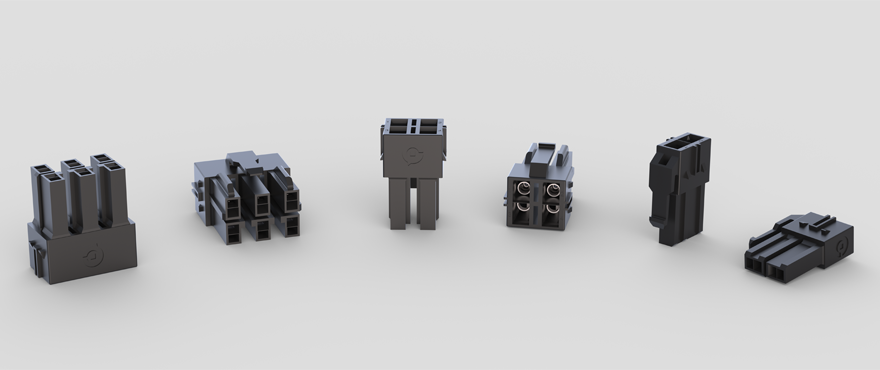

The JP6.5 mating connectors are the ideal complement to the JP6.5 connectors and are available in various designs and colors.
PRODUCT SPECIFICATION
- BK = Black
- BU = Blue
- GY = Grey
- YE = Yellow
- GN = Green
- PK = Pink
- BN = Brown
- WH = White
- RD = Red
- OR = Orange
- MT = Mint
- LI = Lila
Technical Data
| A | B | C | Dimensions | Part no. |
|---|---|---|---|---|
| 21.95 | 7.74 | 14.8 | 2-pin | 402101A |
| 21.95 | 14.24 | 14.8 | 4-pin | 402201A |
| 21.95 | 20.74 | 14.8 | 6-pin | 402301A |

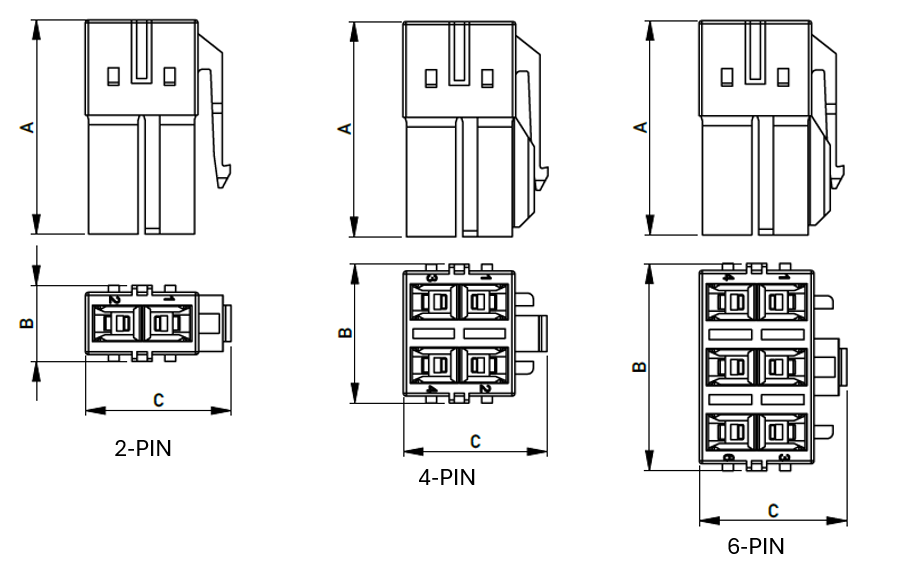

Scale Drawings
Measurements A–C in mm
