MTCON-JPT-Angled in 4th Gen
The new angled MTCON JPT connectors with modern press-fit technology are available in various designs and colors and are compatible with standard wire connectors.
PRODUCT SPECIFICATION
- BK = Black
- BU = Blue
- GY = Grey
- YE = Yellow
- GN = Green
- PK = Pink
- BN = Brown
Technical Data
| A | B | C | D | E | Dimensions | Part no. |
|---|---|---|---|---|---|---|
| 18.7 | 12.2 | 26.8 | 18.8 | 4.25 | 6-pin | 400119A |
| 18.7 | 12.2 | 26.8 | 23.8 | 4.25 | 9-pin | 400219A |
| 18.7 | 12.2 | 26.8 | 28.8 | 4.25 | 12-pin | 400319A |
| 18.7 | 12.2 | 26.8 | 33.8 | 4.25 | 15-pin | 400419A |
| 18.7 | 12.2 | 26.8 | 38.8 | 4.25 | 18-pin | 400519A |
| 18.7 | 12.2 | 26.8 | 43.8 | 4.25 | 21-pin | 400619A |

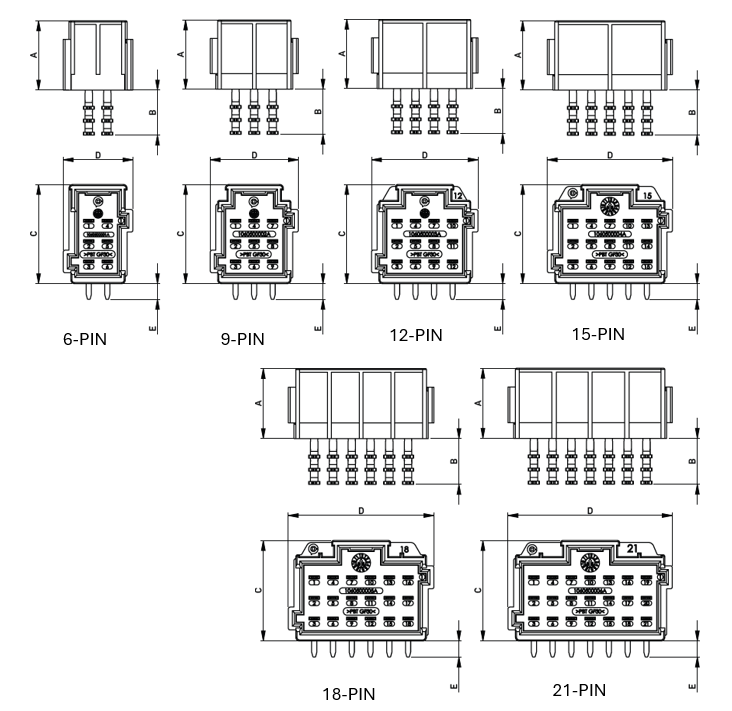

Scale Drawings
Measurements A–E in mm
