MTCON MCPIN CONNECTORS in 2nd Gen
MTCON’S BOARD MCPIN CONNECTORS ARE AVAILABLE IN MODERN PRESS-FIT, VERSIONS AND VARIOUS COLOURS, COMPATIBLE WITH OTHER WIRE CONNECTORS COMMON ON THE MARKET.
PRODUCT SPECIFICATION
- Black = BK
- Grey = GY
- Blue = BU
- Green = GN
- Brown = BN
- Violet = VI
Technical Data
| A | B | C | D | Coding | Dimensions | Part no. |
|---|---|---|---|---|---|---|
| 25.9 | 4.65 | 27.5 | 46.5 | COD-A | 36-pin | 403210ABNA |
| 25.9 | 4.65 | 27.5 | 46.5 | COD-B | 36-pin | 403210AVIB |
| 25.9 | 4.65 | 27.5 | 46.5 | COD-C | 36-pin | 403210AGNC |
| 25.9 | 4.65 | 27.5 | 46.5 | COD-D | 36-pin | 403210ABUD |

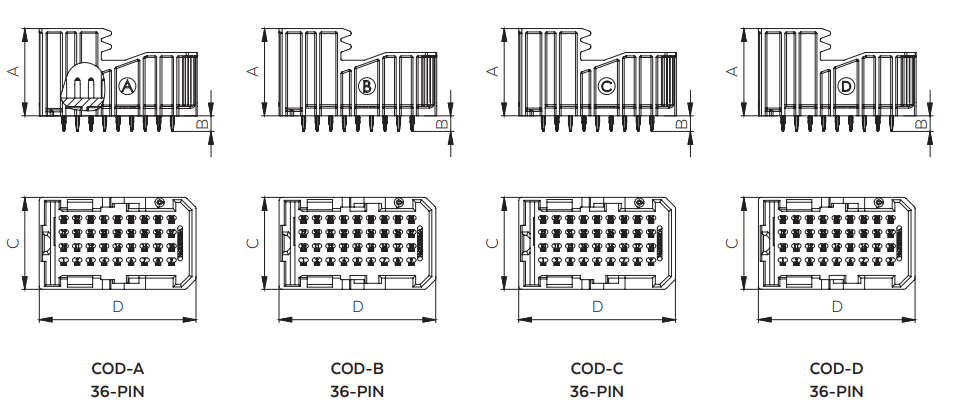

Scale Drawings
Measurements A–D in mm
