MTCON MCPIN CONNECTORS

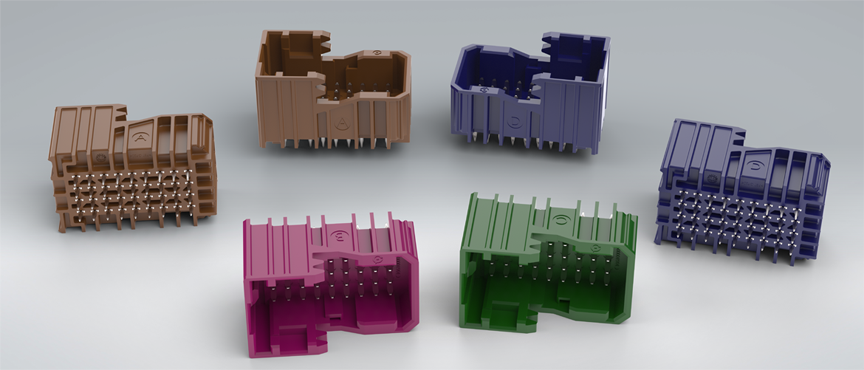

MTCON’S MCPIN CONNECTORS ARE AVAILABLE IN MODERN PRESS-FIT, THT VERSIONS AND VARIOUS COLOURS, COMPATIBLE WITH OTHER WIRE CONNECTORS COMMON ON THE MARKET.
PRODUCT SPECIFICATION
- BK = Black
- BU = Blue
- GN = Green
- BN = Brown
- VI = Violet
Technical Data
| A | B | C | D | Coding | Dimensions | Part no. |
|---|---|---|---|---|---|---|
| 25.9 | 4.65 | 27.5 | 46.5 | COD-A | 36-pin | 403200ABNA |
| 25.9 | 4.65 | 27.5 | 46.5 | COD-B | 36-pin | 403200AVIB |
| 25.9 | 4.65 | 27.5 | 46.5 | COD-C | 36-pin | 403200AGNC |
| 25.9 | 4.65 | 27.5 | 46.5 | COD-D | 36-pin | 403200ABUD |
Scale Drawings
Measurements A–D in mm
