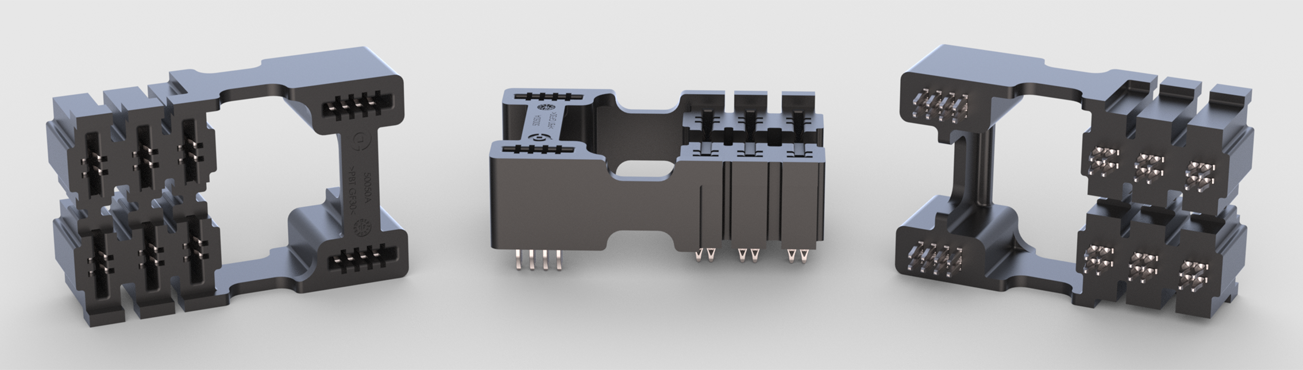

Relaissockel
MTCON RELAY SOCKETS ARE AVAILABLE IN MICRO, MINI (9-POLE VERSION ALSO AVAILABLE) AND MAXI VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 4 of 5 | 4 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 4 of 5 | 3 of 5 | 4 of 5 | 200517ABKA |
| 3 of 5 | 3 of 5 | 3 of 5 | 1 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 200517ABKB |
Technical Data
| A | B | D | D | E | F | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|---|---|
| 15.3 | 15.3 | 33.9 | 52.68 | - | - | Bone | M | 200517ABKA |
| 15.3 | 15.3 | 33.9 | 52.68 | - | - | Bone | M | 200517ABKB |
| - | - | - | - | 38.5 | 62.2 | Kit (Bone) | - | 200517AKIT I |
| - | - | - | - | 44 | 62.2 | Kit (Bone) | - | 200517AKIT II |

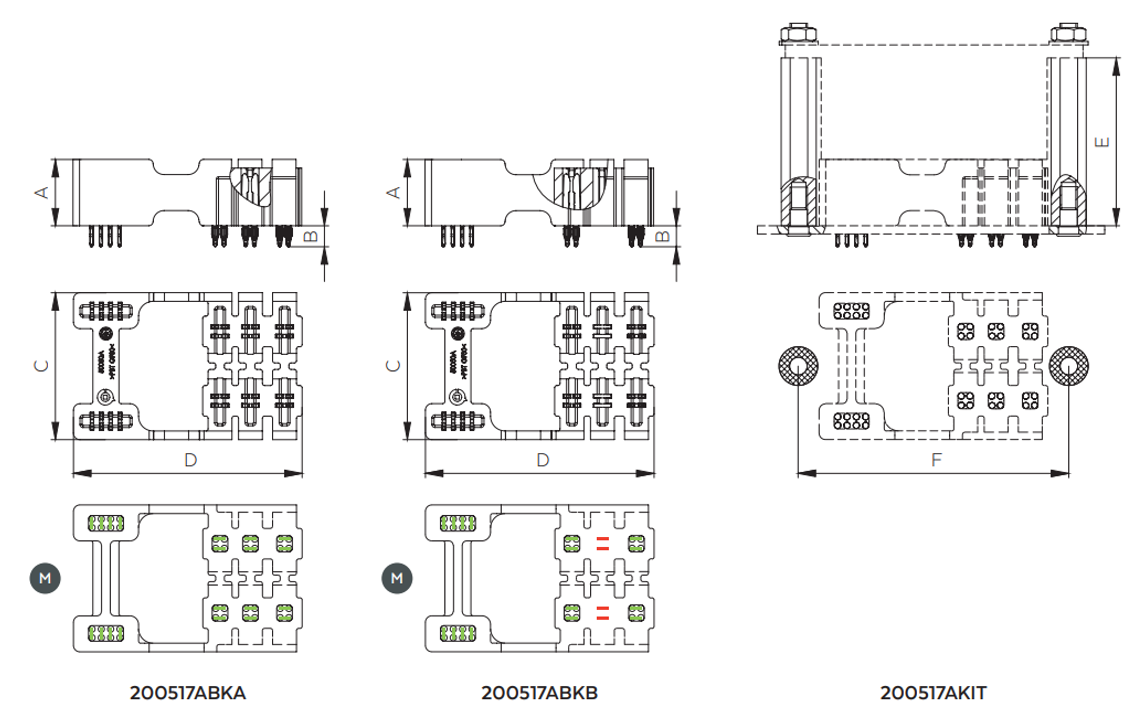

Scale Drawings
Measurements A–D in mm
