Relaissockel in 2nd Gen

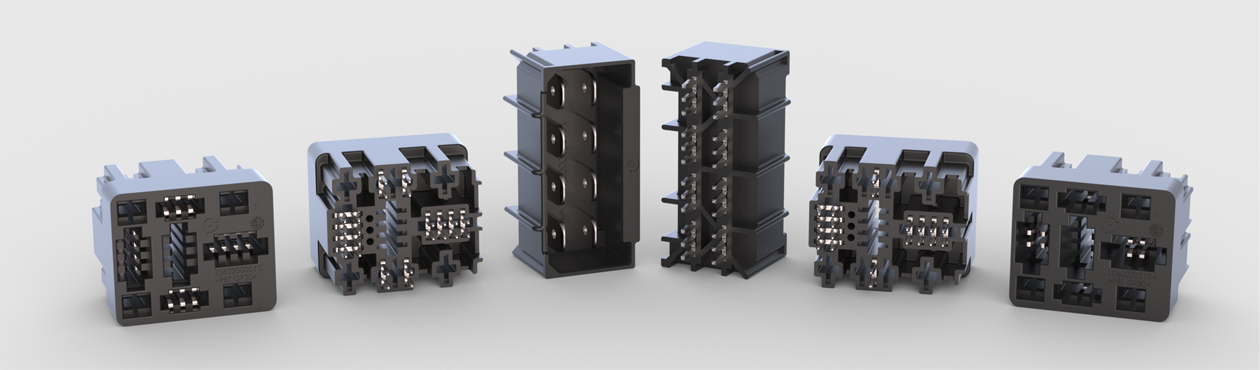

MTCON RELAY SOCKETS ARE AVAILABLE IN MICRO, MINI (9-POLE VERSION ALSO AVAILABLE) AND MAXI VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 5 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 2 of 5 | 5 of 5 | 3 of 5 | 200410A |
| 4 of 5 | 4 of 5 | 4 of 5 | 1 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 200411A |
| 4 of 5 | 3 of 5 | 4 of 5 | 1 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 200412A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 200413A |
Technical Data
| A | B | C | D | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|
| 20.5 | 4.85 | 24 | 28.55 | Maxi | HD | 200410A |
| 20 | 4.85 | 24 | 28.55 | Maxi | M | 200411A |
| 20 | 4.85 | 24 | 28.55 | Maxi | M | 200412A |
| 20 | 4.85 | 24 | 28.55 | Maxi | L | 200413A |
| 17 | 4.85 | 20.6 | 40 | XL | tin | 200511A |
| 17 | 4.85 | 20.6 | 40 | XL | silver | 200512A |

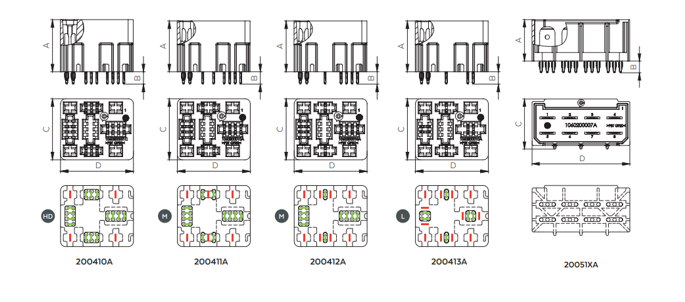

Scale Drawings
Measurements A–D in mm
