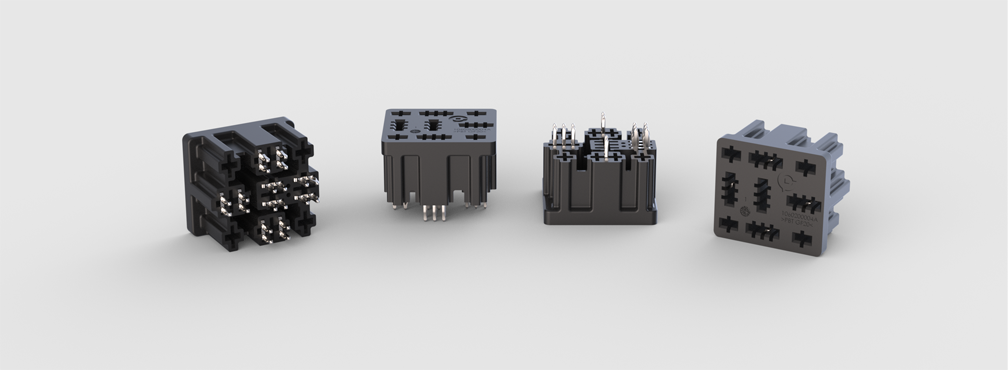

Relaissockel in 2nd Gen
MTCON RELAY SOCKETS ARE AVAILABLE IN MICRO, MINI (9-POLE VERSION ALSO AVAILABLE) AND MAXI VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 5 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 2 of 5 | 5 of 5 | 3 of 5 | 200210A |
| 4 of 5 | 4 of 5 | 4 of 5 | 1 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 200211A |
| 3 of 5 | 3 of 5 | 3 of 5 | 1 of 5 | 5 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 200212A |
| 5 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 2 of 5 | 5 of 5 | 3 of 5 | 200310A |
| 4 of 5 | 3 of 5 | 3 of 5 | 1 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 200311A |
| 4 of 5 | 3 of 5 | 3 of 5 | 3 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 4 of 5 | 200312A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 200313A |
Technical Data
| A | B | C | D | Dimensions | assembly | Part no. |
|---|---|---|---|---|---|---|
| 15.5 | 4.85 | 24 | 26.35 | Mini (9-pin) | HD | 200210A |
| 15.5 | 4.85 | 24 | 26.35 | Mini (9-pin) | M | 200211A |
| 15.5 | 4.85 | 24 | 26.35 | Mini (9-pin) | L | 200212A |
| 15.5 | 4.85 | 24 | 26.35 | Mini (5-pin) | HD | 200310A |
| 15.5 | 4.85 | 24 | 26.35 | Mini (5-pin) | M | 200311A |
| 15.5 | 4.85 | 24 | 26.35 | Mini (5-pin) | M | 200312A |
| 15.5 | 4.85 | 24 | 26.35 | Mini (5-pin) | L | 200313A |
Scale Drawings
Measurements A–D in mm
