Relaissockel
MTCON RELAY SOCKETS ARE AVAILABLE IN MICRO, MINI (9-POLE VERSION ALSO AVAILABLE) AND MAXI VERSIONS.
PRODUCT SPECIFICATION
- BK = Black
Rating
| Vibrations and shock resistance | Retention Force | Current carrying capacity | Potting Ability | Temperature Resistance | Optimized Layout | Added Functions with Accessories | Cost savings | Part number |
|---|---|---|---|---|---|---|---|---|
| 4 of 5 | 4 of 5 | 4 of 5 | 5 of 5 | 5 of 5 | 4 of 5 | 3 of 5 | 4 of 5 | 200400A |
| 4 of 5 | 3 of 5 | 4 of 5 | 1 of 5 | 5 of 5 | 4 of 5 | 3 of 5 | 4 of 5 | 200401A |
| 2 of 5 | 2 of 5 | 2 of 5 | 1 of 5 | 5 of 5 | 5 of 5 | 3 of 5 | 5 of 5 | 200402A |
Technical Data
| A | B | C | D | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|
| 20.5 | 4.85 | 23 | 27.2 | Maxi | M | 200400A |
| 20.5 | 4.85 | 23 | 27.2 | Maxi | M | 200401A |
| 20.5 | 4.85 | 23 | 27.2 | Maxi | L | 200402A |

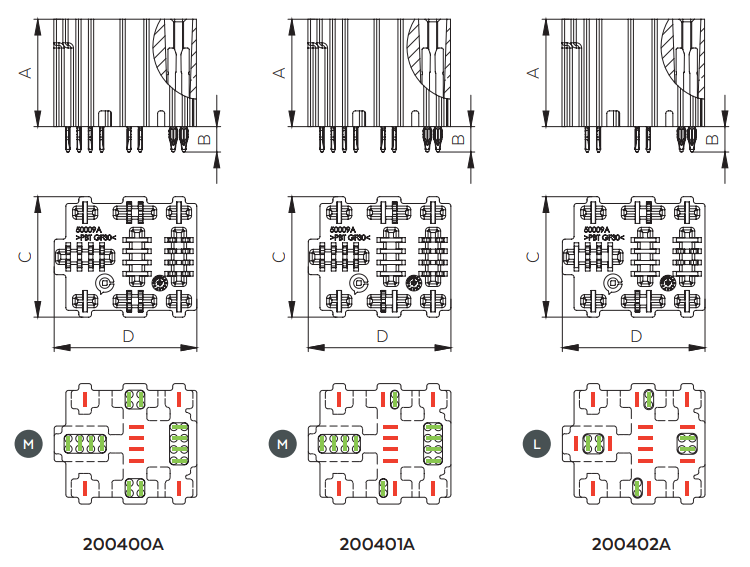

Scale Drawings
Measurements A–D in mm
