Relaissockel in 4th Gen

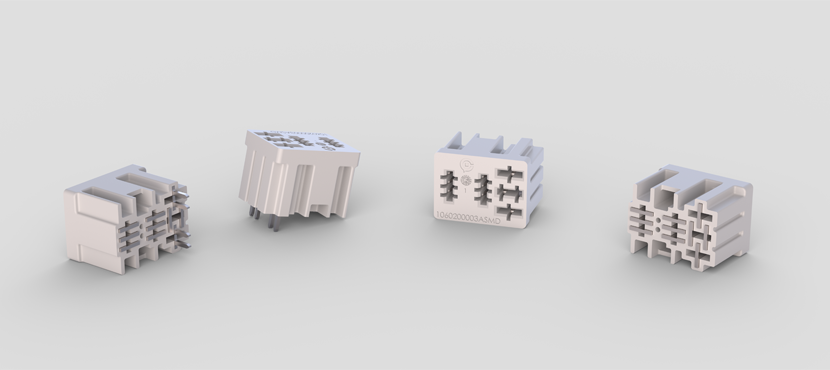

Discover a world first: The innovative Relay Sockets with SMD technology from MTCON. Available in Micro, Mini (also in a 9-pin version), and Maxi sizes.
PRODUCT SPECIFICATION
- BK = Black
Technical Data
| A | B | C | D | E | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|---|
| 15.5 | 0.5 | 16.1 | 21.65 | - | Micro | HD | 200160A |
| 15.5 | 0.5 | 16.1 | 21.65 | 4.25 | Micro | HD+ | 200161A |

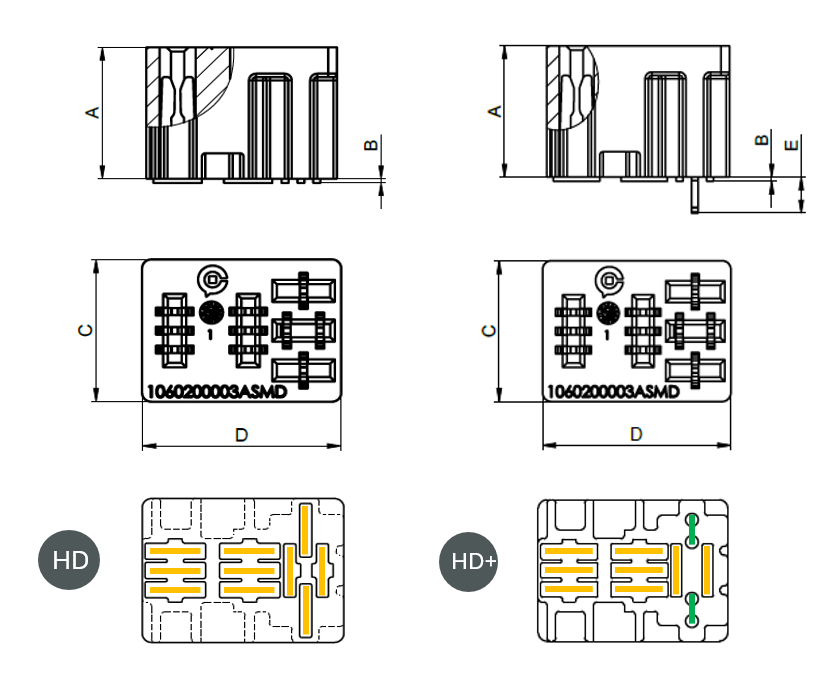

Scale Drawings
Measurements A–E in mm
