Relaissockel in 4th Gen
The MTCON relay bases from the 4th Gen are available in Micro and Mini versions.
PRODUCT SPECIFICATION
- WH = White
Technical Data
| A | B | C | D | Dimensions | Assembly | Part no. |
|---|---|---|---|---|---|---|
| 18.2 | 4 | 24.9 | 26.7 | Mini | HD | 200530A |
| 21.4 | 3.6 | 15 | 22.2 | Micro | HD | 200531A |

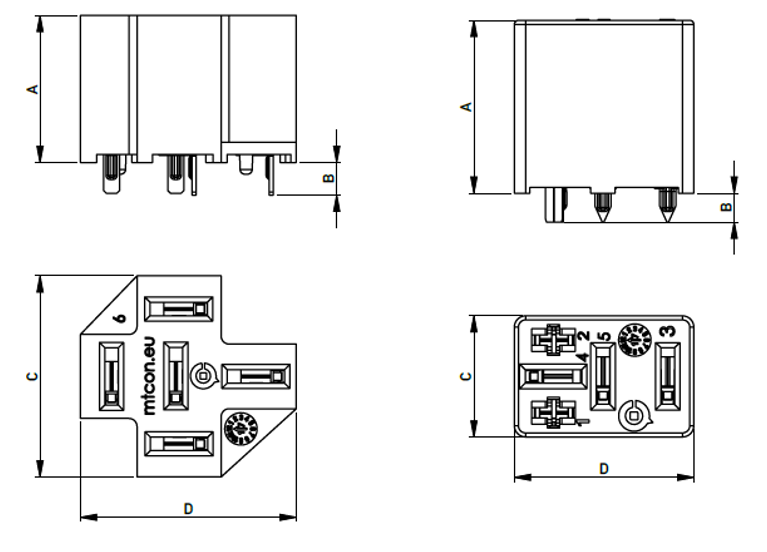

Scale Drawings
Measurements A–D in mm
