Power Spacer
Internal-external thread in M2.5 with key-width 5
PRODUCT SPECIFICATION
- Hexagonal spacer bolts with internal and external threads
- For exact distancing of different components
- Prevent mechanical contact between components
- For percise,durable and efficient circuit-board construction
- Easy to use highly versatile
- RoHS compliant
TECHNICAL DATA
| A | B | C | D | E | F | G | H | J | Material | Part number |
|---|---|---|---|---|---|---|---|---|---|---|
| M2.5 | 0.3 | 9 | 6 | KW5 | 6 | Ø 2 | 1.1 | M2.5 | Brass nickel-plated | 06.2.0101 |
| M2.5 | 0.3 | 10 | 6 | KW5 | 6 | Ø 2 | 1.1 | M2.5 | Brass nickel-plated | 06.2.0102 |
| M2.5 | 0.3 | 15 | 6 | KW5 | 6 | Ø 2 | 1.1 | M2.5 | Brass nickel-plated | 06.2.0103 |
| M2.5 | 0.3 | 18 | 6 | KW5 | 6 | Ø 2 | 1.1 | M2.5 | Brass nickel-plated | 06.2.0104 |
| M2.5 | 0.3 | 20 | 6 | KW5 | 6 | Ø 2 | 1.1 | M2.5 | Brass nickel-plated | 06.2.0105 |

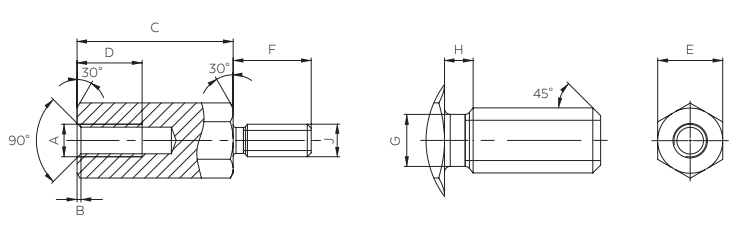

Scale Drawings
Dimensions B-D, F-H in mm
