Power Spacer
Internal-internal , full-length in M2 with key-width 4
PRODUCT SPECIFICATION
- Hexagonal spacer bolts with full-length internal thread
- For exact distancing of different components
- Prevent mechanical contact between components
- For precise, durable and efficient circuit-board construction
- Easy to use and highly versatile
- RoHS compliant
TECHNICAL DATA
| A | B | C | D | Material | Artikelnummer |
|---|---|---|---|---|---|
| M2 | 0,3 | 3,5 | SW4 | Brass nickel-plated | 06.1.0001 |
| M2 | 0,3 | 4 | SW4 | Brass nickel-plated | 06.1.0002 |
| M2 | 0,3 | 5 | SW4 | Brass nickel-plated | 06.1.0003 |
| M2 | 0,3 | 6 | SW4 | Brass nickel-plated | 06.1.0004 |
| M2 | 0,3 | 7 | SW4 | Brass nickel-plated | 06.1.0005 |
| M2 | 0,3 | 8 | SW4 | Brass nickel-plated | 06.1.0006 |
| M2 | 0,3 | 9 | SW4 | Brass nickel-plated | 06.1.0007 |
| M2 | 0,3 | 10 | SW4 | Brass nickel-plated | 06.1.0008 |
| M2 | 0,3 | 14,5 | SW4 | Brass nickel-plated | 06.1.0009 |

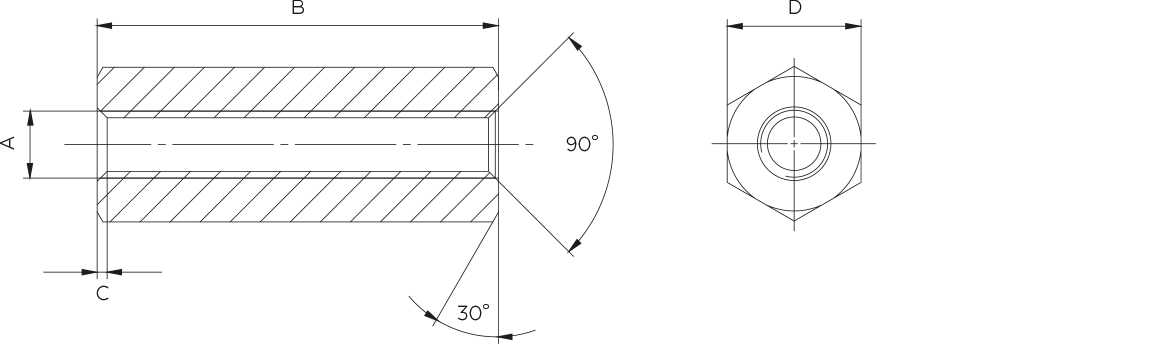

Scale Drawings
Dimensions B-C in mm
