POWER SOCKET STRONG SERIES WITH THREADED INSERT
BUSHING WITH WIRE THREAD INSERT, SOLID PRESS-FIT TECHNOLOGY, PIN ARRANGEMENT OVER THE ENTIRE SURFACE
PRODUCT SPECIFICATION
- Specifically for mounting on Power Tower and Power Socket elements
- Prevents short circuits with nearby components
- Protects against contact and twisting
- Enables smaller distances between two power elements in a layout
- RoHS compliant
- REACH compliant
TECHNICAL DATA
| A | B | C | D | E | F | Number of Poles | Weight [in g] | Product number |
|---|---|---|---|---|---|---|---|---|
| M5 | 7 | 10.5 | 5 | 3.5 | 9 | 16/B2 | 4.18 | 02.1.1000.GE |
| M6 | 10.5 | 14 | 6 | 3.5 | 10 | 16/B2 | 7.54 | 02.1.1001.GE |
| M8 | 13.5 | 17 | 9 | 3.5 | 13 | 25/B3 | 15.14 | 02.1.1002.GE |
| M10 | 17.5 | 21 | 11.5 | 3.5 | 16 | 36/B4 | 29.39 | 02.1.1003.GE |

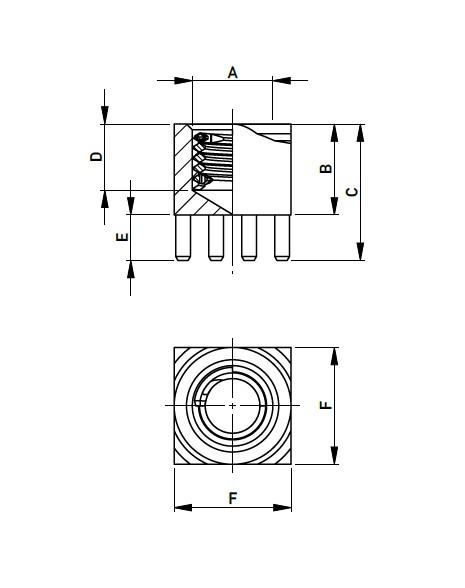

Scale Drawings
Dimensions A-F in mm
