    Power Tower in Flexible Press-Fit Zone

    Our product series 16.1.00XX.BB meet all requirements of the which will come into force in the future REACH, RoHS and ELV regulations, just like the future tightened regulation the required lead-free.

    PRODUCT SPECIFICATION

    • Mechanical stability, high retaining force and high contact reliability, even high loads.
    • Transmission of hogh currents (up to 10 A per contact) at high temperatures with large contacts in standard circuit boards
    • Efficient miniaturzation with smallest contacts and small bores in thin circuit boards
    • High plasticity and elasticity for maximum flexilibility in tehe choice of circuit board materials
    • Can be customized to mmet individual material, size and force requirements
    • ICE 60352-5 tested press-fit zone, standardized, tested,certified
    • RoHS compliant
    • REACH compliant

    TECHNICAL DATA

    A B C D E F G H J Model Part number
    M5 5.85 16.31 22.16 7.5 1.5 12.6 16 14.5 Power Tower 16.1.0003
    M6 9.68 16.31 25.99 7.5 1.5 17 16 14.5 Power Tower 16.1.0004
    M5 5.85 16.31 22.16 7.5 1.5 16.5 12.1 15 Power Tower Strong 16.1.0013

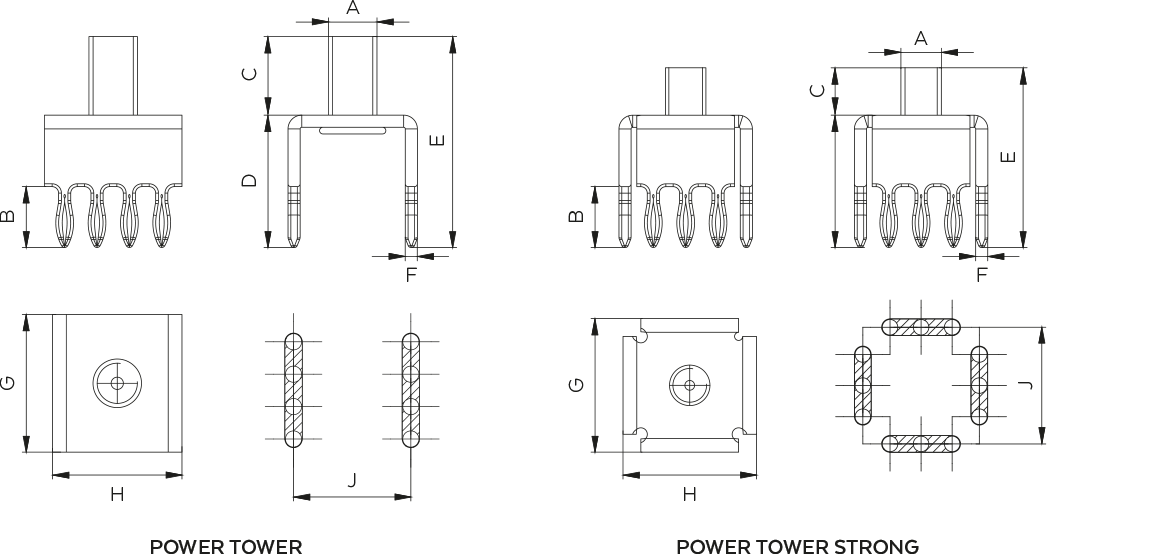

    Scale Drawings

    Dimensions B-J in mm

    BACK
    TO
    OVERVIEW

    Bizon Contact

    Almost looks like the eye of a needle, but ....



    ALWAYS APPLY THE GREATEST CONTACT FORCE TO THE CENTRE OF THE CIRCUIT BOARD, AS THIS IS WHERE IT IS MOST STABLE.



    • For thinner PCBs and especially for metallic lead frames (usually thinner than 1.6 mm), this can lead to malfunction.
    • Needle-eye contacts for smaller holes than 0.6 mm can no longer be punched reliably (cracks).
    • Needle-eye contacts (and similar geometries) always have an inner distance between both legs in their entire lengths.
    • The hole must be larger by this distance. Loss of space. The clearance and creepage distance decrease.
    • The legs can actively jump inwards due to various circumstances ("clicker", collapsing).
    • Then no more contact in the middle (picture on the right), but only in the less stable edge area of the LP at the top (and maybe at the bottom).
    MORE INFORMATION
    ON THE WEBSITE
    BIZON-KONTAKT.DE

    Adjustable contact force

    Unique feature

    What are the benefits?
    Changed materials for PCB and contact require adaptation of the contact.BIZON-Kontakt is quickly designed for the right holding force. Shortens development time, saves costs. Fully elastic, it becomes a BIZON plug contact. Direct plug connector for PCB.

    How does it work?
    The spring range is lengthened (smaller contact force) or shortened (larger contact force) at the contact.

                                                                                                                      Spring long= soft                                      spring short = hard
